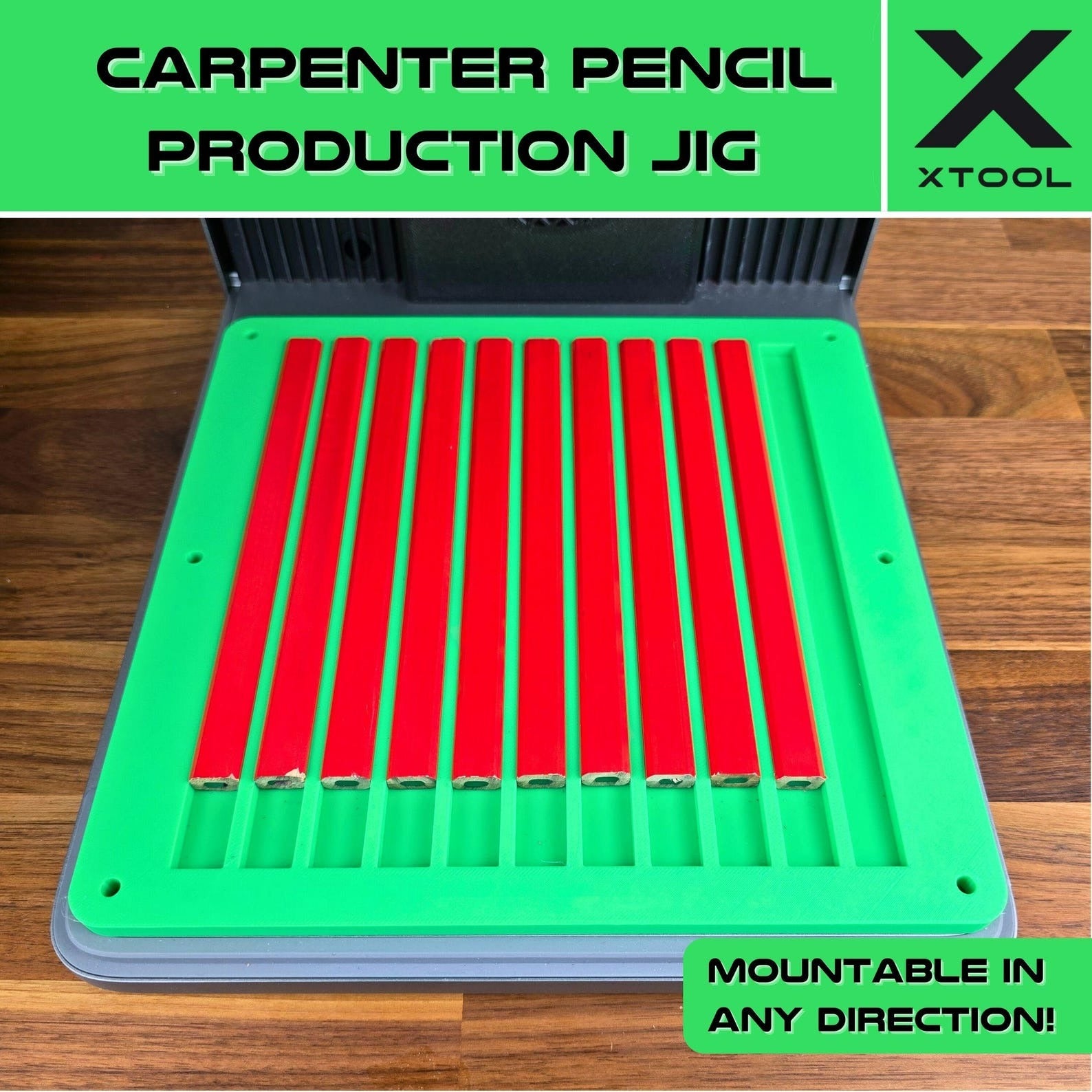

F1 Ultra Carpenter Pencil Production Jig

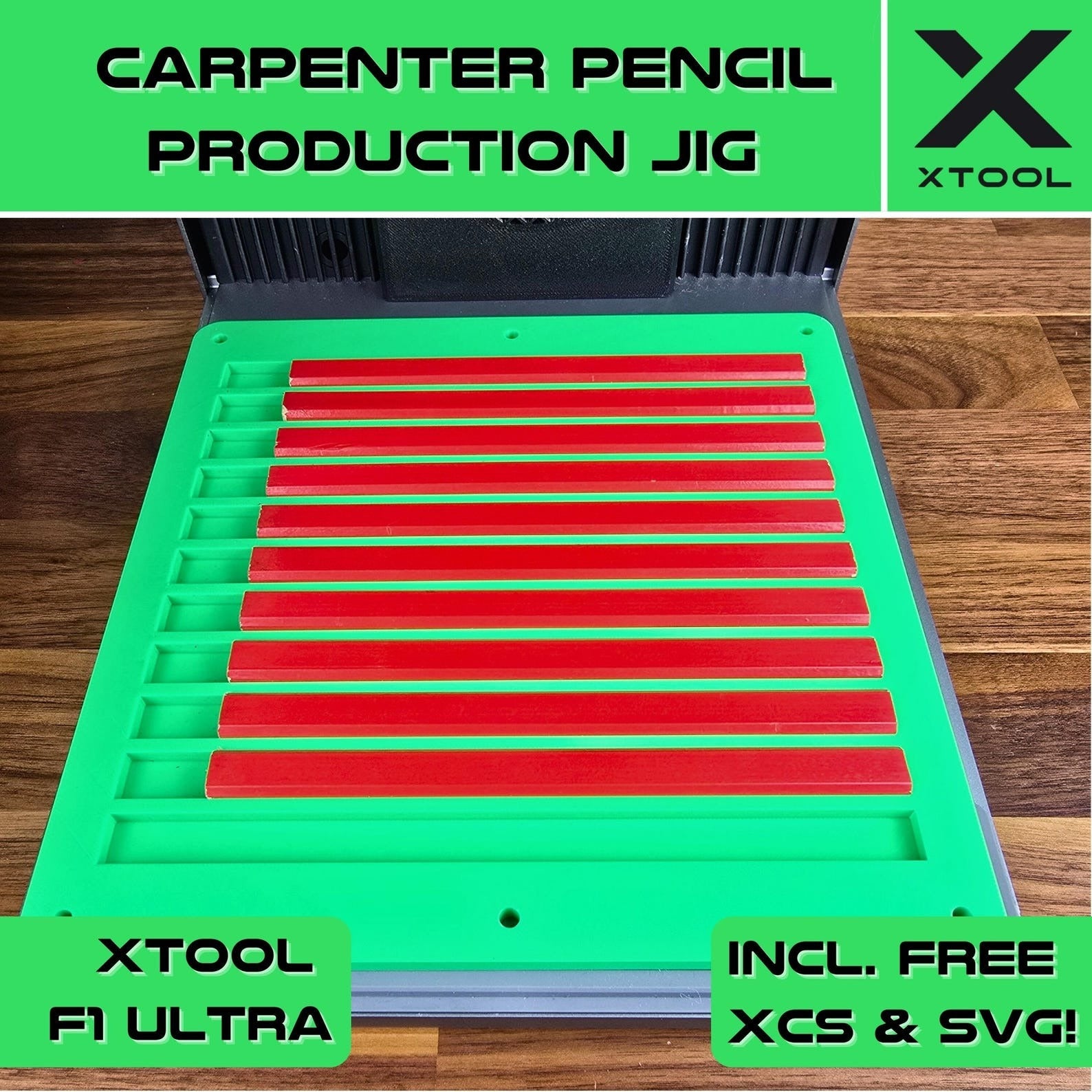

Maximize your laser engraving productivity with this 3D-Printed Carpenter Pencil Jig, built specifically for the xTool F1 Ultra. This jig is engineered to securely hold up to 11 carpenter pencils—the popular flat type used in trades and crafts—for clean, centered, and repeatable engraving.

It fits standard carpenter pencils up to 200mm (7.87") long and 13mm (0.51") wide, and works seamlessly with blanks from JDS, Amazon, Temu, and AliExpress.

🔧 Key Features:

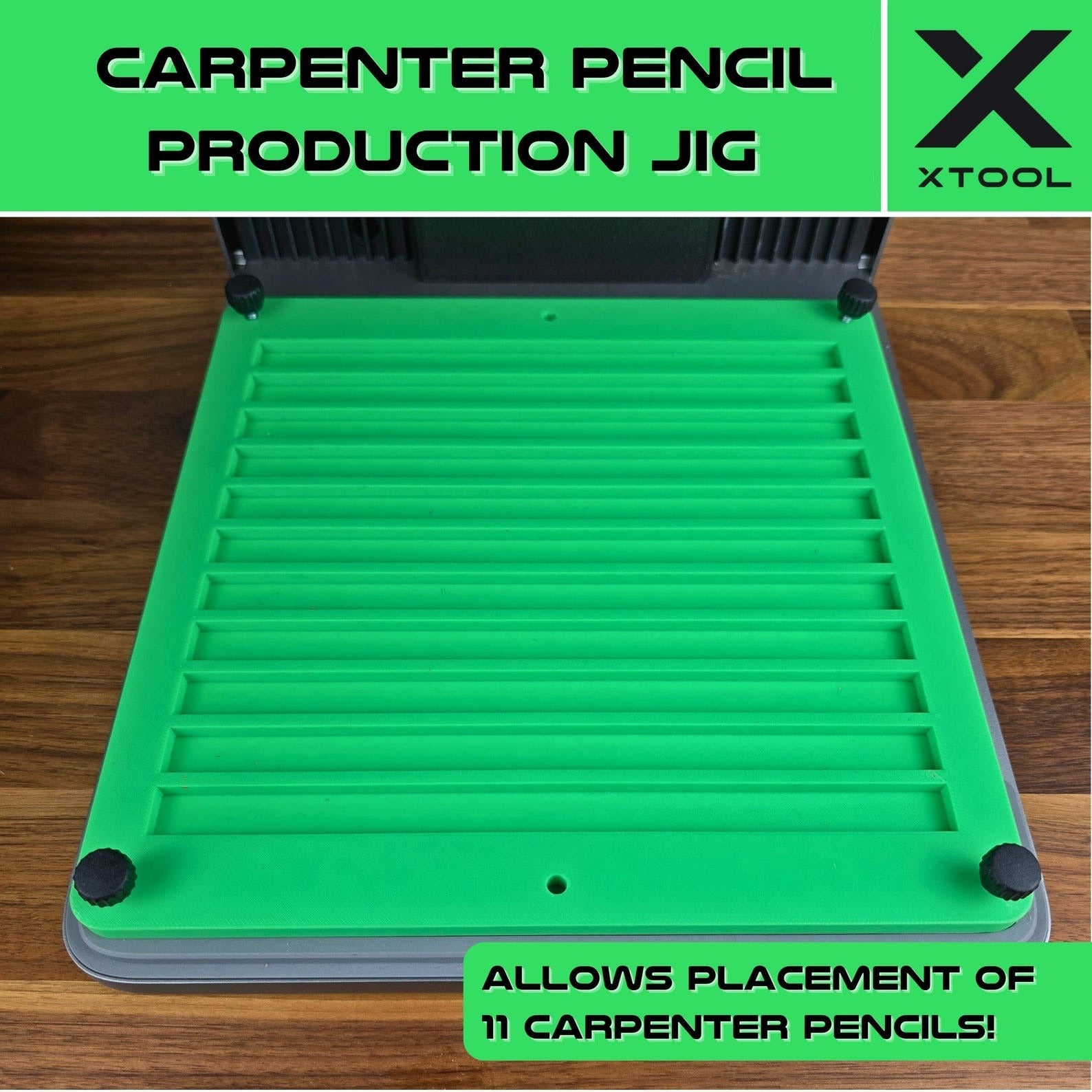

✅ Engraves 11 Pencils at Once – Speed up your workflow with batch engraving efficiency.
✅ Fits Standard Carpenter Pencils – Compatible with pencils up to 200mm (7.87") long and 13mm (0.51") wide.
✅ Precision Placement – Ensures perfect alignment and consistent engraving every time.
✅ Includes FREE Templates – Comes with XCS & SVG files to get started immediately.

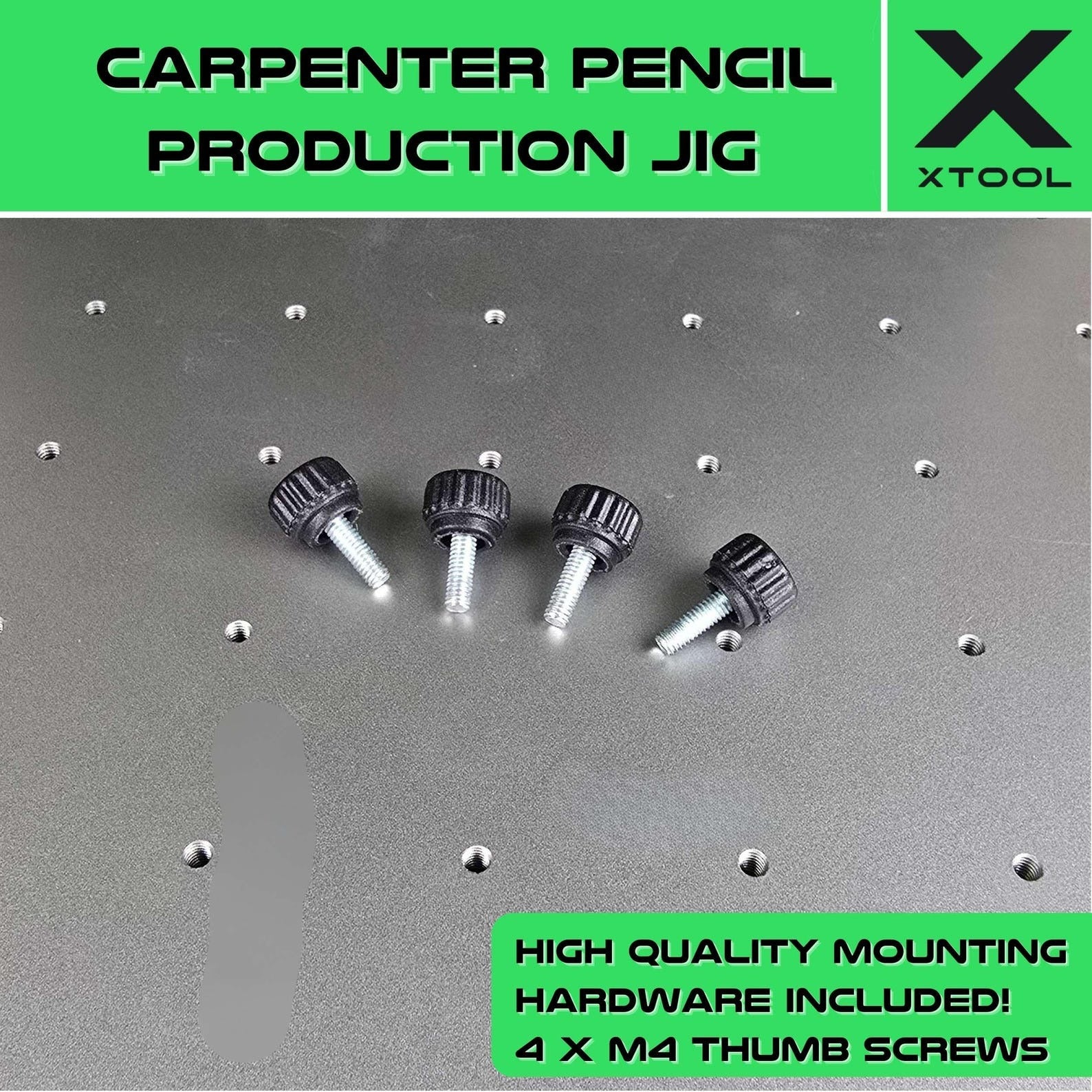

✅ Quick Tool-Free Setup – 4x M4 Thumbscrews included for secure mounting on the F1 Ultra baseplate.

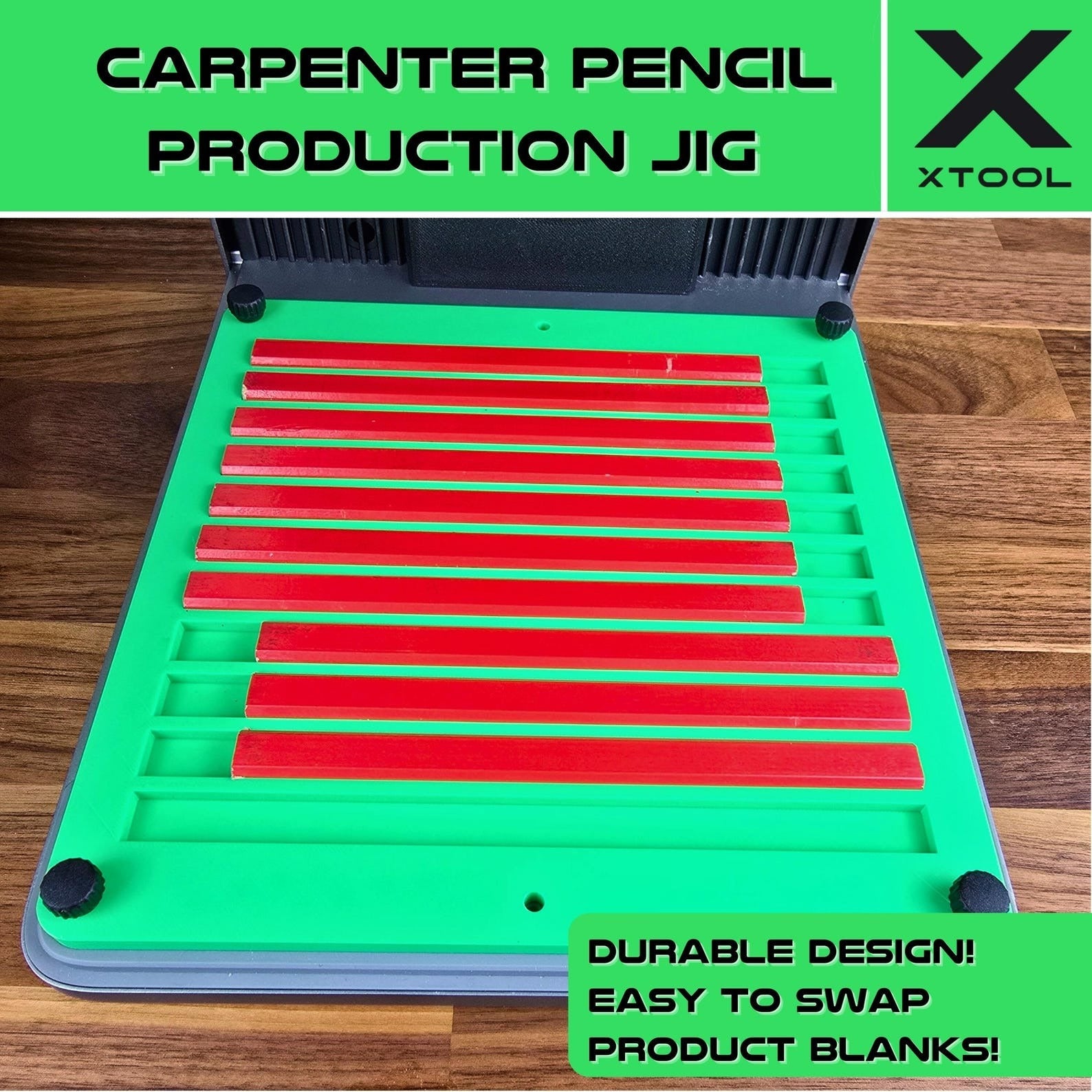

✅ Durable & Reusable – 3D printed from high-quality filament, ready for repeated use.

🪵 Why It’s a Workshop Must-Have:
🔹 Great for Tradespeople – Personalize carpenter pencils for construction crews, apprentices, or giveaways.
🔹 Perfect for Events & Promotions – Custom logos, names, or slogans look sharp and professional.
🔹 Secure Fit, No Slipping – Your pencils stay put for repeatable results across every batch.
🔹 Compatible with Popular Suppliers – Works great with carpenter pencil blanks from JDS, Amazon, Temu, AliExpress.

💡 Whether you’re engraving for a business, tradeshow, or gift shop—this jig makes your setup faster and your results sharper!

Manufacturer(s):

Product Name: Laser Alignment Jig
Date: January 01, 2025
Manufacturer: Skys Creative Studio Limited
Contact Info: Knockauncarragh, Barna, Co. Galway, Ireland | info [!at] skyscreativestudio.com

Product safety:

- This jig is intended for workshop use only. Keep out of reach of children under 14 years.
- Do not expose the 3D printed frame to the laser beam. Direct contact may cause melting or toxic fume release.
- Always ensure the jig is securely positioned and screws are hand-tightened before starting laser operations.
- Only use the jig on compatible flat laser beds. Do not force fit or overtighten screws.
- Use in a well-ventilated environment. If burnt or melted, discontinue use immediately.
- Not suitable as a toy or for unsupervised use.
- Check the jig for signs of wear or damage regularly and replace if compromised.
- When disposing, follow your local recycling regulations for PLA/PETG plastic.
